Comprehensive YBE69 Automatic Production Line for Mining Quarry Mobile Crushing Station

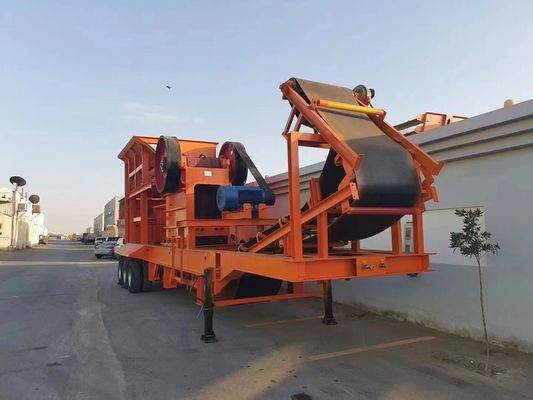

Large Image : Comprehensive YBE69 Automatic Production Line for Mining Quarry Mobile Crushing Station

Product Details:

Place of Origin:	China
Certification:	ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Normal Packing Ls in Wooden Cases
Delivery Time:	Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability:	100sets/Years

Contact Now

Comprehensive YBE69 Automatic Production Line for Mining Quarry Mobile Crushing Station

Description

Model NO.:	YBE69	Automatic Production Line:	Comprehensive
Flexible Production:	Intelligent Manufacturing	Rhythm:	Flow Production Line
Production Scope:	Parts Production Line	Transport Package:	Standard Container
Specification:	Enterprise Standard	Trademark:	Dingbo Machinery
Origin:	Shanghai China	HS Code:	8474209000
Supply Ability:	70-150t/H	Automation:	Non Automation
Color:	As Clients′request	After Sales Service:	One Year
Warranty Period:	1 Year	Export Markets:	Global
Transmission Type:	Flexible	Customization:	Available \| Customized Request

ate, material waste and long working time. The proper space arrangement of this machine frame improves the flexibility of jobsite residence. Shanghai Dinbo company

can provide many models of portable crusher plants. Such as the portable jaw crusher plant series, portable cone crusher plant series, portable impact crusher plant series.
Mobile crushing plant breaks through the constraint of traditional fixed and high-cost of transportation crushing plant. It can deal materials in nearby site which applied in mining, metallurgy, bilding material, transportation, water conservancy and other industries.

model	3YBF1510	3YBF1810	3YBF1814	3YBF2115
Vibrating feeder	3YZS1548	3YZS1848	3YZS1860	3YZS2160
Impact crusher	PF1010	PF1210	PF1214	PF1315
Belt conveyor	*B5007M**	*B6507M**	*B6508M**	*B8008M**
Capacity(t/h)	50-250	70-300	90-400	120-450
Power(kw)	70-90	128.5-150.5	154-190	210-297
Overall dimension(mm)	*1250028006000*	*1250030006500*	*1350030006500*	*1400032006500*
Weight(t)	42	46	51	57

The usage and advantages of Portable Crusher, Gold Mining Equipment, Mobile Crusher

The integrative full-set machine frame
The integrative full-set machine frame eliminates the segregate components' disadvantages, such as jobsite complic
Flexibility
The truck loading chassis of mobile crusher is high and truck width is less than operation semi-trailer. The turning radius is short and convenient for traveling on the common road. It is more suitable for traveling on the rugged and bad environment in the jobsite. It saves time to enter the jobsite and supplies more flexible space and reasonable arrangement.
Low material transportation fee
The mobile crusher or mobile crushing plant can crush the material in the first-line of the jobsite and avoid the middle link of transporting the material to other places and then crushing. It saves the transportation fee greatly. Besides, the lengthening machine frame can send the material directly to the transferring truck wagon box and then leave the jobsite easily.
Direct and effective operation
The integrative series mobile crusher or mobile crushing plant can be used independently; It can also supply more flexible process configuration based on the material types, product requirement of customers to satisfy the movable crushing and screening demand. The product organization and logistic transportation will be more directly and effective to low the cost.
Strong suitability and flexible configuration
The mobile crusher or mobile crushing plant can operate independently and can also work together with other machines aiming at the coarse crushing and fine screening. The side-discharging of discharge hopper supplies multimode configuration of screening and transporting materials. The integrative diesel generator can supply power to the machine frame itself as well as the process system configurations.
Reliable performance and easily repair
The mobile crusher or mobile crushing plant includes the PE series jaw crusher. This jaw crusher has the high-efficiency, multi-function, excellent crushing product quality as well as the reasonable structure design and prominent crushing characteristics. It has the strong adoption ability for the transporting quantity, material particle size and abrasiveness. It brings long wear time and higher work efficiency. The reliable and stable quality establishes the perfect reputation among all the users domestic or abroad.
