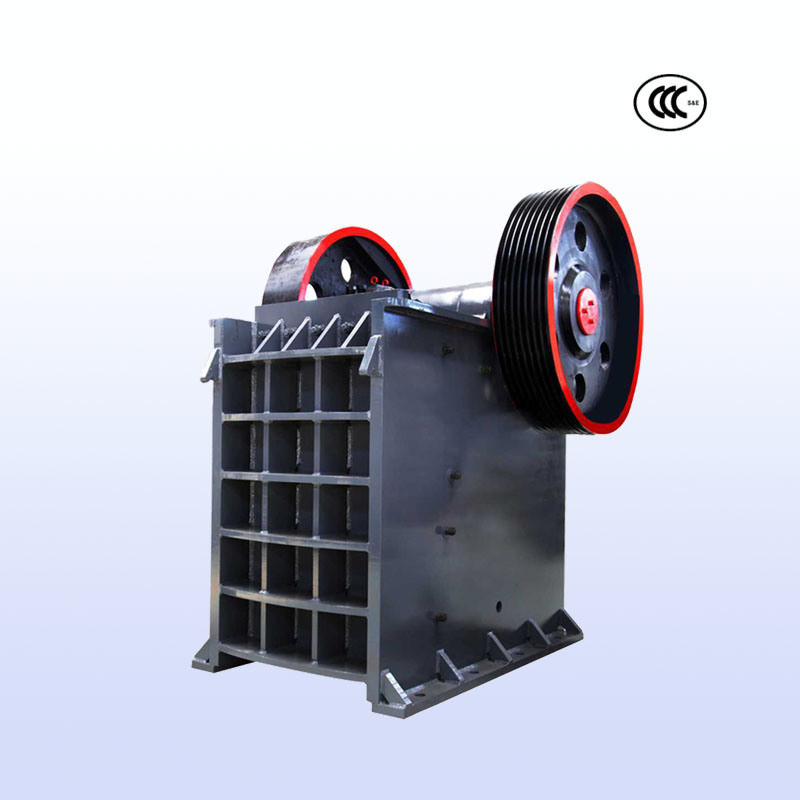

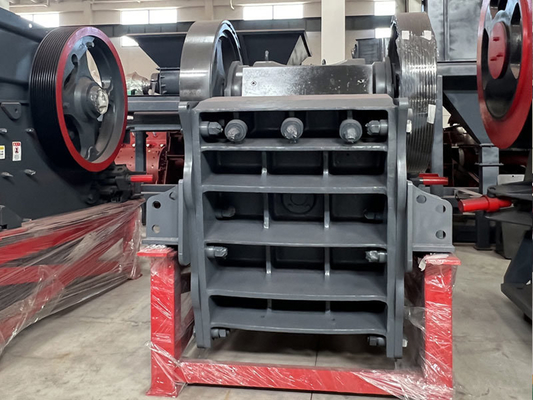

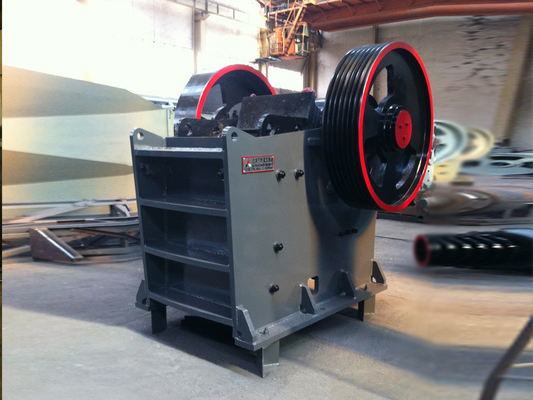

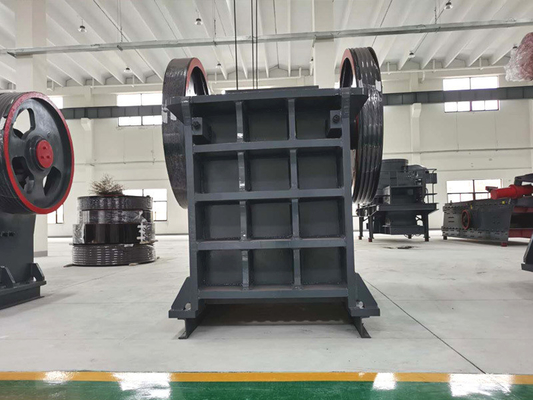

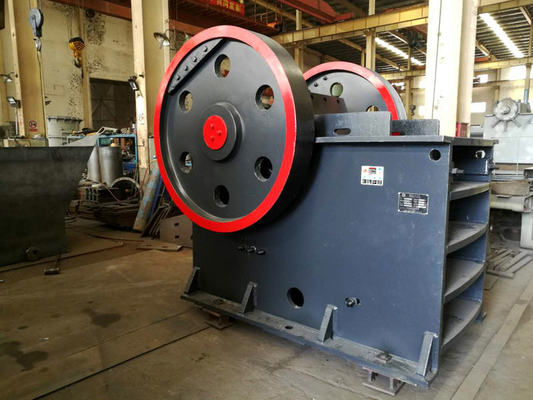

PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request

Certification
China Shanghai Dingbo Heavy Industry Machinery Co., Ltd certification
China Shanghai Dingbo Heavy Industry Machinery Co., Ltd certification
I'm Online Chat Now

PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request

PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request
PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request

Large Image :  PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request

Product Details:
Place of Origin: China
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Normal Packing Ls in Wooden Cases
Delivery Time: Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability: 100sets/Month

PE600*900 Mine Stone Granite Jaw Crusher Easy Maintenance and Customized Request

Description
Model NO.: PE600*900 Inlet Size: 600×900mm
Condition: New Warranty: 1year
After-sales Service: Perfect Capacity(T/H): 2290*2206*2370
Input Size/mm: 600*400mm Finished Size/Um: 40-100mm
Color: Any Maintenance: Easy
Transport Package: Standard Container Specification: Standard
Trademark: Dingbo Machinery Origin: Shanghai, China
HS Code: 84742090 Supply Ability: 45-110t/H
Type: Jaw Crusher Motor Type: AC Motor
Motor Power: 55kw Application: Construction
Materials: Limestone Outlet Size: 65-140mm
Customization: Available | Customized Request


Specification parameters


Jaw Crusher
   Model Feed inlet
size(mm)
Max inlet
 size(mm)
Capacity
(t/h)
Electric
 power(kw)
Overall size
 LxWxH(mm)
Weight(t)
PEX150× 250 150× 250 125 1-5 5.5 875× 758× 850 0.81
PE250× 400 250× 400 210 5-20 15 1450× 1315× 1296 2.8
PE400× 600 400× 600 350 15-65 30 1700*1732*1653 6.2
PE500× 750 500× 750 425 45-80 55 1892× 2054× 1853 10.1
PE600× 900 600× 900 500 70-150 55-75 2520× 1840× 2303 15.5
PE750× 1060 750× 1060 630 130-260 110 2620× 2302× 3110 28
PE900× 1200 900× 1200 750 220-500 110-132 3789× 2826× 3025 50
PE1000× 1200 1000× 1200 850 250-700 132 3889× 2826× 3025 57
PE1200x1500 1200× 1500 1020 400-1000 160-220 4200× 3750× 3820 100.9
PEX150x750 150x750 125 5-16 15 1200x1500x1200 3.8
PEX250x750 250x750 210 15-30 30 1667x1545x1250 5.6
PEX250x1000 250x1000 210 20-50 30 1530x1992x1380 7
PEX250x1200 250x1200 210 25-60 37 1900x2190x1430 8
PEX300x1300 300x1300 250 30-105 55-75 2720x1950x1600 11
PEW250x1000 250x1000 220 15-50 37 1400x1850x1310 6.8
PEW250x1200 250x1200 220 20-60 37 1400x20500x1310 7.8
PEW400x600 400x600 350 15-70 37 1920x1460x1840 8
PEW760 760x1100 620 150-350 110 2600x2500x2200 27
PEW860 860x1100 720 200-500 132 3300x2320x3120 32

This series of jaw crusher can reach the crushing ratio of 4-6 and the shape of final product is even. They are widely applied to crush high hardness, mid-hardness and soft rocks and ores such as slags, construction materials, marble, etc. The pressure resistance strength is under 350Mpa, suitable for primary crush. Jaw Crusher can be used in mining, metallurgical industry, construction, road and railway building, conversancy, chemistry, etc.
Characteristics of Jaw Crusher:
1. Optimized crushing cavity greatly improves feeding and crushing efficiency, saving energy by 15% -30%;
2. The larger heavy eccentric shaft, high manganese steel jaw plate and movable jaw assembly brings higher carrying capacity and stability.
3. Adopt the world's advanced manufacturing technology, digital analysis of components operating and precise internal structural greatly extend the lifespan of device.
4. The unique design of centralized lubrication system is more efficient for components lubrication but requires less maintenance.
5. Gasketed discharge adjustment of device permits larger adjustable range, which increases the flexibility of the device to meet the demand of customer in processing.
6. The device is in line with the national environmental standards, low noise with dust removal equipment, which is in full compliance with environmental requirements.PE600*900 Mine Stone Granite Jaw CrusherPE600*900 Mine Stone Granite Jaw CrusherPE600*900 Mine Stone Granite Jaw CrusherPE600*900 Mine Stone Granite Jaw CrusherPE600*900 Mine Stone Granite Jaw Crusher


Application Area

Almost all minerals, such as quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble,
coal, slag, iron ore, copper ore, manganeseore, refractory material, glass, etc.



Dingbo company

Dingbo company is a factory supplier of mining machinery, mainly focusing on stone crushers, powder grinding mills, and mineral
beneficiation plants. We can offer you a free design and completed solution according to your project.






Customer visit

Shanghai Dingbo Heavy Industry Reliable products and high-quality services allow more customers to choose.




case

Shanghai Dingbo Heavy Industry provides crusher equipment for more than 3,000 quarries in 60 countries around the world.



Excellent service

We firmly believe that quality service is the cornerstone of our long-term relationship with our customers. We will provide you with the support and solutions you need in an efficient and accurate manner.



Working Principle:
This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
