European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements

Certification
China Shanghai Dingbo Heavy Industry Machinery Co., Ltd certification
China Shanghai Dingbo Heavy Industry Machinery Co., Ltd certification
I'm Online Chat Now

European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements

European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements
European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements

Large Image :  European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements

Product Details:
Place of Origin: China
Certification: ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Normal Packing Ls in Wooden Cases
Delivery Time: Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability: 100sets/Month

European Version of Rough Grinding Raymond Mill for Industrial Standard Requirements

Description
Model NO.: PC4012-90 Compressive Strength (For Crushing): 250-300MPA
Crushing Degree: Coarse Crusher Finished Surface: Thread Process
Condition: New Color: Per Stipulated
Capacity/(T/H): 30-100t/H Finished Particle Size/mm: 0-3mm
Transport Package: Standard Container Specification: Industrial Standard
Trademark: Dingbo Machinery Origin: Shanghai, China
HS Code: 84742090 Supply Ability: 30-100t/H
After-sales Service: 1year Warranty: 1 Year
Type: Hammer Mill Application: Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Drive: Electric Crushing Style: Grinding & Impact
Customization: Available | Customized Request

European Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillEuropean Version of Rough Grinding Raymond MillCrusher
Capacity: 35-100t/h
Uniform particle size
Easy operation
Reasonable price and timely delivery

Application
Crushing plant is applied to the intermediate crushing and fine crushing of materials in metallurgy, mining, chemical, cement, coal, sand-making, coal gangue, construction, refractory materials and ceramic industries.
Mainly for the comprehensive strength of materials should be not higher than 320 MPA.

Features
High manufacturing capacity and low power consumption
Uniform particle size with high crushing ratio
Simple structure
Easy operation and low investment

Working principle

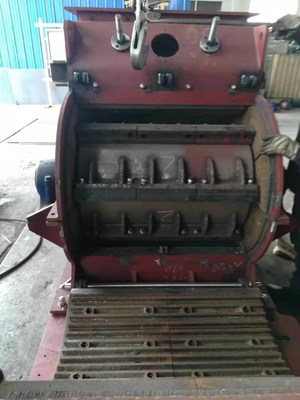

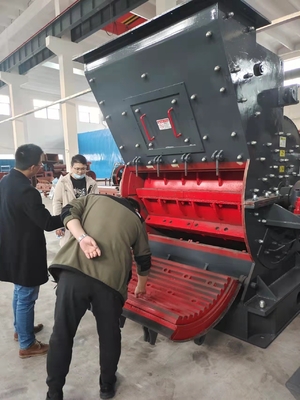

Crushing plant is mainly consists of frame, rotor, support iron and grate bars.
1. The frame is divided into two parts: Upper part and lower part, which are welded after being cut by steel plates. There is high manganese steels inside it, which is replaceable.
2. Rotor consists of the main shaft with several regularly grouped hammers, turn plate, pin shaft. Through the motor and triangle belts, the main unit drives the main shaft, and thereby drives the rotor.

3. Large materials entering the crusher through the feed inlet are firstly crushed by the high-speed hammers, and then the materials will be threw fiercely to the support iron, at this time, the materials will be crushed again.
4. The qualified materials will be screened out and exit from the gap of the Grate bars, then what about the unqualified? They will be left in the crushing cavity to be further hammered and ground until reach the standard size.
Type PC4008-75 PC4012-90 PC4015-132
Rotor Diameter/mm 750 900 1150
Rotor Width/mm 800 1200 1500
Rotor Speed/ ( r/min) 800-1000 800-1000 550-800
Max Feeding Size/mm <70 <90 <100
Finished Particle Size/mm ≤3 ≤3 ≤3
Capacity/( t/h) 35-50 50-70 70-100
Power/KW 55-75 75-90 110-132
Hammer Number 18 16 32
Layout Size(L*W*H/mm) 2310*1665*1610 2840*2100*2020 3720*2650*2540
