75kw Motor Power PC4012-90 Sand and Gravel Grinding Equipment for High Capacity Grinding

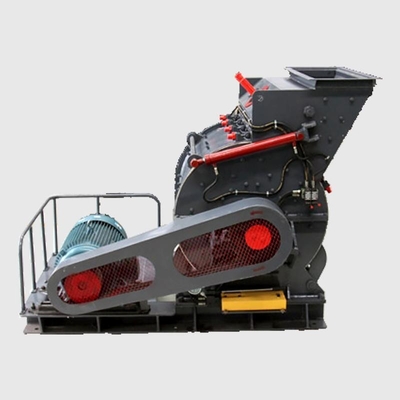

Large Image : 75kw Motor Power PC4012-90 Sand and Gravel Grinding Equipment for High Capacity Grinding

Product Details:

Place of Origin:	China
Certification:	ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Normal Packing Ls in Wooden Cases
Delivery Time:	Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability:	100sets/Month

Contact Now

75kw Motor Power PC4012-90 Sand and Gravel Grinding Equipment for High Capacity Grinding

Description

Model NO.:	PC4012-90	Inlet Size:	400×1200mm
Condition:	New	Warranty:	One Year
Color:	Per Stipulated	Capacity:	Various
Export Markets:	Global	Transport Package:	Standard Packing
Specification:	Industrial Standard	Trademark:	Dingbo Machinery
Origin:	China	HS Code:	84742090
Supply Ability:	300 Sets Per Year	Type:	Hammer Crusher
Motor Type:	AC Motor	Motor Power:	75kw
Application:	Construction	Materials:	Limestone
Outlet Size:	0-5mm	Customization:	Available \| Customized Request

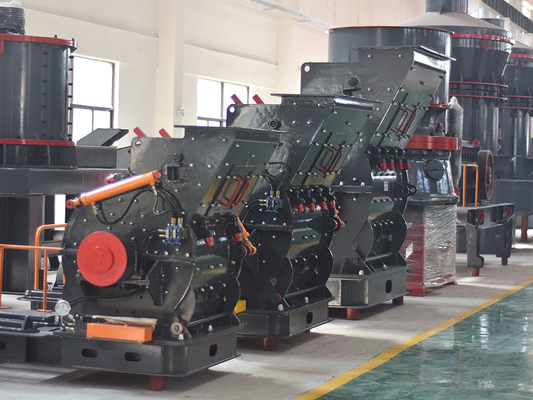

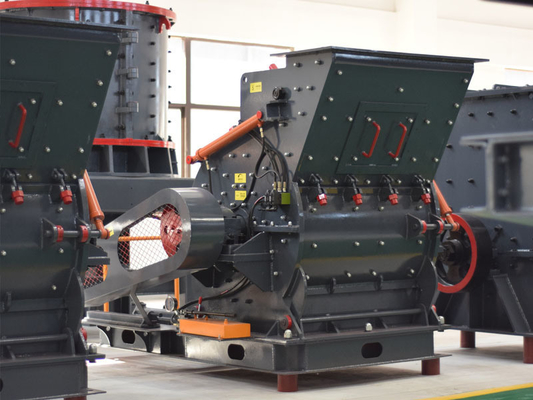

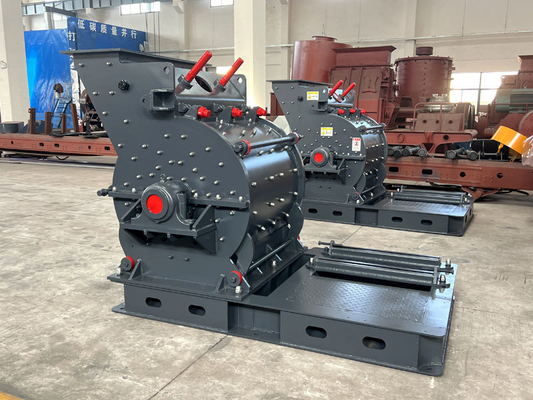

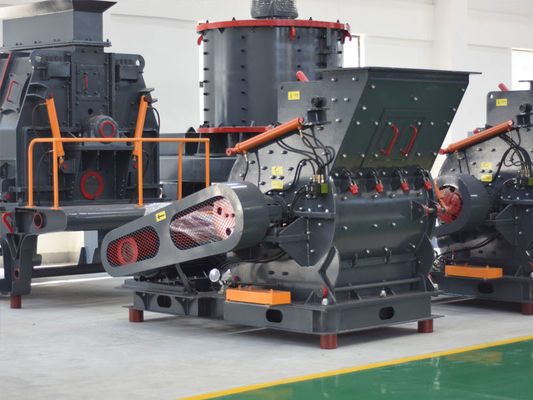

Latest-model European Coarse Grinding Mill

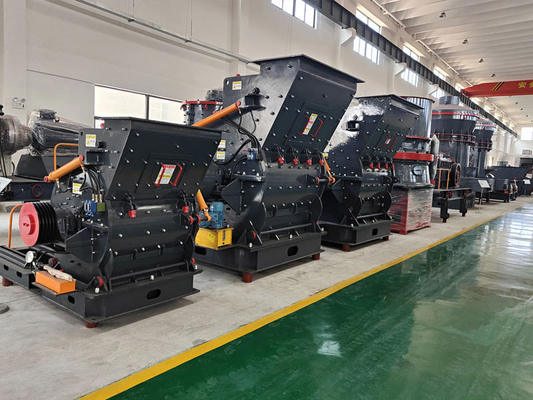

Working plant site in China for limestone

Technical Specification:

Model	PC4008-75	PC4012-90	PC4015-132
Rotor Diameter (mm)	750	900	1150
Rotor Length (mm)	800	1200	1500
Rotor Speed (r/min)	800-1000	800-1000	550-800
Inlet size (mm)	320×930	400×1200	500×1500
Max. Feeding Size (mm)	<50	<50	<100
Outlet Size (mm)	0-3	0-3	0-8
Capacity (t/h)	10-30	30-60	60-100
Power (KW)	75	90	132
Overall Dimension (mm)	231016651610	284021002020	372026502540

Advantages and Features:
1.the production capacity, high crushing ratio;
2.low power consumption, uniform particle size;
3.mechanical structure is simple, compact and lightweight;
4.low investment costs, management, and convenient.

Working Principle:
the Hammer Crusher or Coarse Powder Mill casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
