Product Details:
|
Model NO.: | VSI-7611 | Inlet Size: | <35mm |
---|---|---|---|
Condition: | New | Warranty: | 1year |
After-sales Service: | Perfect | Capacity(T/H): | 120-180tph |
Input Size/mm: | 0-35mm | Finished Size/Um: | 0-5mm |
Color: | Iron Gray | Maintenance: | Easy |

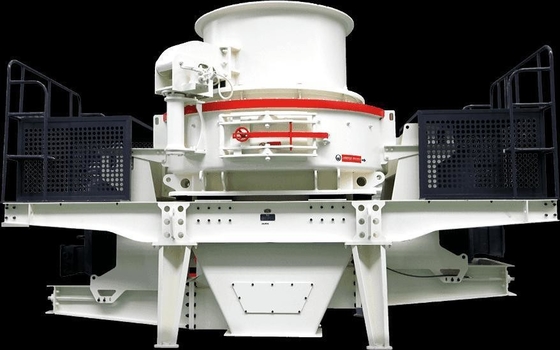

Product Name: | VSI Vertical Shaft Impact Crusher | After-Sale Service: | Problems Within 48 Hours |
Quality: | Advanced Technology | Spare Parts Supply: | Lifelong Provide |
Installation: | Under Technical Guidance | Transport Package: | Standard Container |
Specification: | Standard | Trademark: | Dingbo Machinery |
Origin: | Shanghai, China | HS Code: | 84742090 |
Supply Ability: | 100sets/Years | Type: | Impact Crusher |
Motor Type: | AC Motor | Motor Power: | 4-55*2kw |
Application: | Construction | Materials: | Stone,Ore,Sand |
Outlet Size: | 0-5mm | Customization: | Available | Customized Request |
Model | Capacity (t/h) | Max. Feeding Sizes (mm) | speed (r/min) | Motor Power (kw) | power supply | ||
Scattering and central feeding | Full center feeding | Soft material | Hard material | ||||
VSI-7611 | 120-180 | 60-90 | <35 | <30 | 1700-1890 | 4-55×2 | 380V:50Hz |
VSI-8522 | 240-380 | 120-200 | <40 | <35 | 1530-1700 | 4-110×2 | 380V:50Hz |
VSI-9532 | 350-540 | 180-280 | <45 | <40 | 1380-1500 | 4-160×2 | 380V:50Hz |
VSI-1140 | 450-520 | 225-260 | <50 | <45 | 1180-1310 | 4-200×2 | 380V/50Hz |
VSI-1145 | 500-640 | 250-360 | <50 | <45 | 1100-1310 | 4-220×2 | 380V:50Hz |
VSI-1263 | 700-850 | 280-480 | <60 | <50 | 900-1200 | 4-315×2 | 380V:50Hz |
1. Are you manufacture or trading company?
We are factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
