1 Year After-sales Service PF1315 Impact Crusher for Mining Machine Stone Crusher

Large Image : 1 Year After-sales Service PF1315 Impact Crusher for Mining Machine Stone Crusher

Product Details:

Place of Origin:	China
Certification:	ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Normal Packing Ls in Wooden Cases
Delivery Time:	Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability:	100sets/Month

Contact Now

1 Year After-sales Service PF1315 Impact Crusher for Mining Machine Stone Crusher

Description

Model NO.:	PF Series	Condition:	New
Warranty:	1year	After-sales Service:	1year
Mining Object:	Metallic And Non-Metallic Ore Excavator	Impact Crusher Installation:	Enginners Guide
After Sale Service:	Engineers Abroad Available	Export Markets:	Global
Transport Package:	Normal Packing Ls In Wooden Cases	Specification:	PF1315Impact Crusher
Trademark:	Dingbo Machinery	Origin:	Shanghai In China
HS Code:	8474209000	Supply Ability:	30 Sets/Month
Type:	Crushing Equipment	Motor Type:	AC Motor
Motor Power:	200kw	Application:	Mine
Materials:	Limestone	Inlet Size:	860*1520
Customization:	Available \| Customized Request

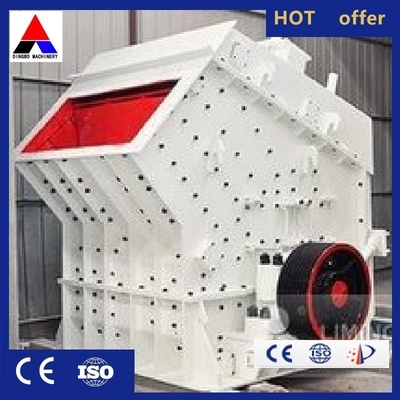

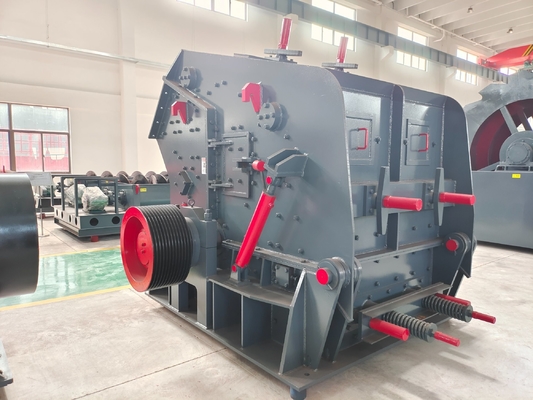

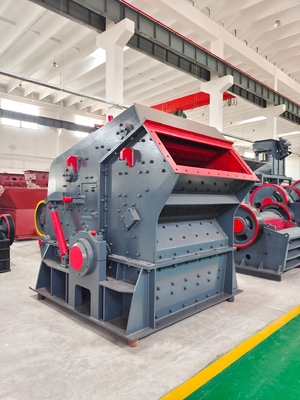

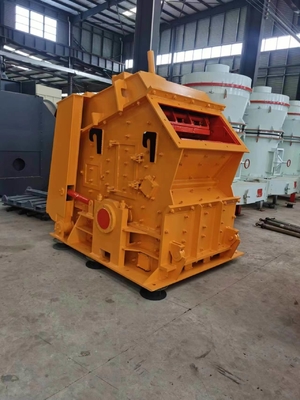

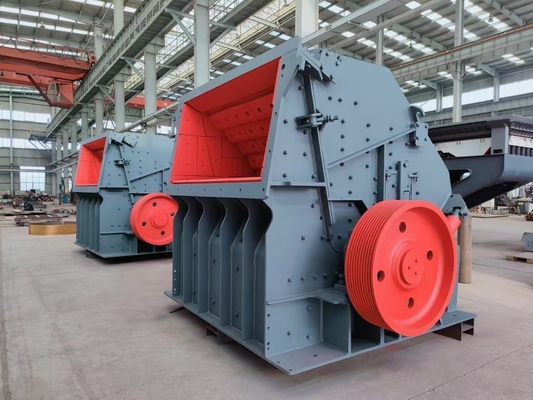

Description of Dingbo Impact Crusher
Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. This PF series impact stone crusher are designed for crushing ores and rocks with particle size less than 500mm and compression strength no higher than 320MPa, they are ideal choice for stone crushing.

This impact crusher features
reasonable structure, high productivity, easy operation and maintenance and safe performance.
The most outstanding advantage of this machine is that its finished powder is in good, cubic shape and without tensility and cranny.

Working Principle of PFseries Impact Crusher:
Impact crusher crushing materials with impact force. When materials enter blow bar area, crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then materials will be shot back to the blow bar again for the third crush. Process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. Size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. Impact crusher employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Fee ding (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Machine Size (mm)
PF-1010	Φ1000×1050	400×1080	350	50-80	55-75	12.6	2440×2250×2630
PF-1210	Φ1250×1050	400×1080	350	70-120	110-132	14	2700×2340×2870
PF-1214	Φ1250×1400	400×1430	350	80-160	132-160	18.6	2700×2440×2900
PF-1315	Φ1300×1500	860×1520	350	160-260	180-260	24.2	2860×2800×3050
PFV-1010	Φ1000×1050	400×1080	350	50-80	55-75	13.2	2400×2250×2660
PFV-1210	Φ1250×1050	400×1080	350	70-120	110-132	15.2	2690×2338×2890
PFV-1214	Φ1250×1400	400×1430	350	130-180	132-160	18.6	2690×2688×2890
PFV-1315	Φ1320×1500	860×1520	350	150-220	180-220	24.5	3096×3273×2667
