Hpt300 Yellow Granite Crushing Hydraulic Cone Crusher for Highway Inlet Size 750×1060mm

Large Image : Hpt300 Yellow Granite Crushing Hydraulic Cone Crusher for Highway Inlet Size 750×1060mm

Product Details:

Place of Origin:	China
Certification:	ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Normal Packing Ls in Wooden Cases
Delivery Time:	Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability:	100sets/Years

Contact Now

Hpt300 Yellow Granite Crushing Hydraulic Cone Crusher for Highway Inlet Size 750×1060mm

Description

Model NO.:	HPT300	Inlet Size:	750×1060mm
Condition:	New	Color:	As Clients Require
Size Of Unit:	Small, Midium, Large	Installation:	Free Initial Installation At Home And Abroad
After Sales Service:	Maintenance And Replacement Service For One Year	Transport Package:	Standard Container
Specification:	Enterprise Standard	Trademark:	Dingbo Machinery
Origin:	Shanghai China	HS Code:	8474209000
Supply Ability:	20 Sets Per Month	Type:	Cone Crusher
Motor Type:	AC Motor	Motor Power:	37kw
Application:	Highway	Materials:	Limestone
Outlet Size:	18-48mm	Customization:	Available \| Customized Request

Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc. The spring safety system of crusher acts as an overloading protection system that allows metals to pass through the crushing chamber so as not to damage the cone crusher. The safety system uses diluted oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make surereliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Dingbo Hydraulic Cone Crusher Feature and Advantage:
1.deal with trouble without disassembly the parts.
2.easy operation,reliable performance and can adust the finished products sizes automatically.
3.high crushing ratio and capacity and cubic product percentage.
4.easier maintenance and lower maintenance cost.
5.The servise time is 30%-80% longer than traditional cone crusher
Working Principle of Cone crusher:

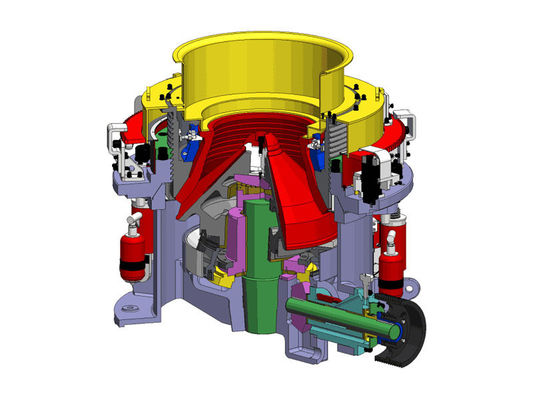

Cone crusher crushes materials by the working surface between the movable cone and fixed cone. The movable cone of the cone crusher is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.

specific ation	model	Cavity type	Diameter of broken cone(mm)	Adjustment range of discharge port(mm)	The size of the opening edge of the opening edge is recommended(mm)	Maximum feeding size(mm)	Processing power(t/h)	power(kw)
Φ600	PYFB-0607	BX	600	6-38	72	61	16-54	22
	PYFB-0609	BC		9-38	109	93	18-68
	PYFB-0610	BTC		13-38	109	93	23-72
Φ900	PYFB-0910	BX	900	9-22	102	85	45-91	8-75
	PYFB-0917	BC		13-38	175	150	59-163
	PYFB-0918	BTC		25-38	178	150	118-163
	PYFB-0904	DX		3-13	41	35	27-90
	PYFB-0906	DZ		3-16	76	65	27-100
	PYFB-0907	DC		6-19	102	85	59-129
Φ1300	PYFB-1313	BX	1295	13-31	137	115	109-181	8-160
	PYFB-1321	BZ		16-38	210	178	132-253
	PYFB-1324	BC		19-51	241	205	172-349
	PYFB-1325	BTC		25-51	259	220	236-358
	PYFD-1306	DX		3-16	64	54	36-163
	PYFD-1308	DZ		6-16	89	76	82-163
	PYFD-1310	DC		8-25	105	89	109-227
	PYFD-1313	DTC		16-25	133	113	209-236
Φ1600	PYFB-1620	BX	1676	16-38	209	178	181-327	8-250
	PYFB-1624	BZ		22-51	241	205	258-417
	PYFB-1626	BC		25-64	269	228	299-635
	PYFB-1636	BTC		38-64	368	313	431-630
	PYFD-1607	DX		5-13	70	60	90-209
	PYFD-1608	DZ		6-19	89	76	136-281
	PYFD-1613	DC		10-25	133	113	190-336
	PYFD-1614	DTC		13-25	152	129	253-336
Φ2100	PYFB-2127	BX	2134	19-38	278	236	544-1044	400
	PYFB-2133	BZ		25-51	334	284	862-1424
	PYFB-2136	BC		31-64	369	314	1125-1814
	PYFB-2146	BTC		38-64	460	391	1252-1941
	PYFD-2110	DX		5-16	105	89	218-463
	PYFD-2113	DZ		10-19	133	113	404-580
	PYFD-2117	DC		13-25	178	151	517-680
	PYFD-2120	DTC		16-25	203	172	580-744
