Gypsum Spring Cone Crushing Machine Stone Cone Crusher Plant by Inlet Size 250×1300mm

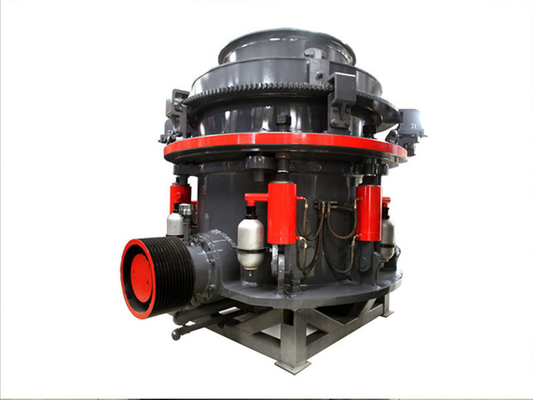

Large Image : Gypsum Spring Cone Crushing Machine Stone Cone Crusher Plant by Inlet Size 250×1300mm

Product Details:

Place of Origin:	China
Certification:	ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Normal Packing Ls in Wooden Cases
Delivery Time:	Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
Payment Terms:	LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Supply Ability:	100sets/Years

Contact Now

Gypsum Spring Cone Crushing Machine Stone Cone Crusher Plant by Inlet Size 250×1300mm

Description

Model NO.:	PYFB SERIES, PY SERIES, PYZ SERIES	Condition:	New
Warranty:	1 Year	After-sales Service:	1year
Mining Object:	Metallic And Non-Metallic Ore Excavator	Spare Parts Supply:	The Whole Life
Export Markets:	Global	Finished Surface:	Thread Process
Transport Package:	Standard Container	Specification:	International
Trademark:	Dingbo Machinery	Origin:	Shanghai, China
HS Code:	84742090	Supply Ability:	100 Sets/Month
Type:	Drilling Machine	Motor Type:	AC Motor
Application:	Construction	Materials:	Limestone
Outlet Size:	150-300mm	Inlet Size:	250×1300mm
Customization:	Available \| Customized Request

Application of Gypsum Spring Cone Crusher
Spring cone crusher is mainly applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crushers are suitable for hard and MID-hard rocks and ores. It is designed with final size 2-60mm, used to crusher, Marble, Silica sand, Dolomite, Basalt, Quartz, Feldspar, Limestone, Granite, Slag. The type of crushing chamber depends upon size of feeding and fineness of crushed product.
Detailed Description:
Spring Cone crusher have features of high quality, low cost and big broken ratio. This type of crushers can crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of high ratio, high efficiency, large capacity, low cost, easy adjustment, and use economically, etc.
The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Features of our Gypsum Micro Powder Grinding Machine
1. High quality and productivity.
2. Less machine stop time.
3. Easy maintenance and low cost.
4. Unique crushing ability in primary, secondary and tertiary crushing.
From it's figuration, we know that it must be complicated to install it. But you don't need to worry about it, because we will offer a high quality after-sales service, as following,
Tracking service for one year, and lifetime warranty
Maintenance and replacement service
Reminding for the service life of the wearing parts
Installation guide
Whole process and guidance

A:PYFBCone Crusher
specification	model	Cavity type	Diameter of broken cone(mm)	Adjus tment range of discharge port(mm)	The size of the opening edge of the opening edge is recomm ended(mm)	Maximum feeding size(mm)	Proces sing power(t/h)	power(kw)
Φ600	PYFB-0607	BX	600	6-38	72	61	16-54	22
	PYFB-0609	BC		9-38	109	93	18-68
	PYFB-0610	BTC		13-38	109	93	23-72
Φ900	PYFB-0910	BX	900	9-22	102	85	45-91	8-75
	PYFB-0917	BC		13-38	175	150	59-163
	PYFB-0918	BTC		25-38	178	150	118-163
	PYFB-0904	DX		3-13	41	35	27-90
	PYFB-0906	DZ		3-16	76	65	27-100
	PYFB-0907	DC		6-19	102	85	59-129
Φ1300	PYFB-1313	BX	1295	13-31	137	115	109-181	8-160
	PYFB-1321	BZ		16-38	210	178	132-253
	PYFB-1324	BC		19-51	241	205	172-349
	PYFB-1325	BTC		25-51	259	220	236-358
	PYFD-1306	DX		3-16	64	54	36-163
	PYFD-1308	DZ		6-16	89	76	82-163
	PYFD-1310	DC		8-25	105	89	109-227
	PYFD-1313	DTC		16-25	133	113	209-236
Φ1600	PYFB-1620	BX	1676	16-38	209	178	181-327	8-250
	PYFB-1624	BZ		22-51	241	205	258-417
	PYFB-1626	BC		25-64	269	228	299-635
	PYFB-1636	BTC		38-64	368	313	431-630
	PYFD-1607	DX		5-13	70	60	90-209
	PYFD-1608	DZ		6-19	89	76	136-281
	PYFD-1613	DC		10-25	133	113	190-336
	PYFD-1614	DTC		13-25	152	129	253-336
Φ2100	PYFB-2127	BX	2134	19-38	278	236	544-1044	400
	PYFB-2133	BZ		25-51	334	284	862-1424
	PYFB-2136	BC		31-64	369	314	1125-1814
	PYFB-2146	BTC		38-64	460	391	1252-1941
	PYFD-2110	DX		5-16	105	89	218-463
	PYFD-2113	DZ		10-19	133	113	404-580
	PYFD-2117	DC		13-25	178	151	517-680
	PYFD-2120	DTC		16-25	203	172	580-744
B:PYCone Crusher
Model	Cavity type	Feeding opening Size(mm)	Dischar gingOp ening Size(mm)	Max Feeding Size(mm)	Capa city(t/h)	Weigh(t)	Power(kw)	Eccen tricRotating Speed(r/min)
PY600	B	75	12-25	65	12-25	5	30	356
PY600	D	40	2-13	35	5-23	5.1	30	356
PY900	B	135	15-50	115	50-90	11.2	55	333
	Z	70	5-20	60	20-65	11.2		333
	D	50	3-13	50	15-50	11.3		333
PY1200	B	170	20-50	145	110-168	24.7	110	300
	Z	115	8-25	100	42-135	25		300
	D	60	3-13	50	18-105	25.6		300
PY1750	B	250	25-50	215	280-480	50.3	160	245
	Z	215	10-30	185	115-320	50.3		245
	D	100	5-15	85	75-230	50.2		245
PY2200	B	350	30-60	300	590-1000	80	260/280	220
	Z	275	10-30	230	200-580	80		220
	D	130	5-15	100	120-370	81.4		220
