Product Details:
|
Model NO.: | PC400*300/PC600*400/PC800*600/PC1000*800 | Inlet Size: | <350mm |
---|---|---|---|
Condition: | New | Warranty: | 1 Year |

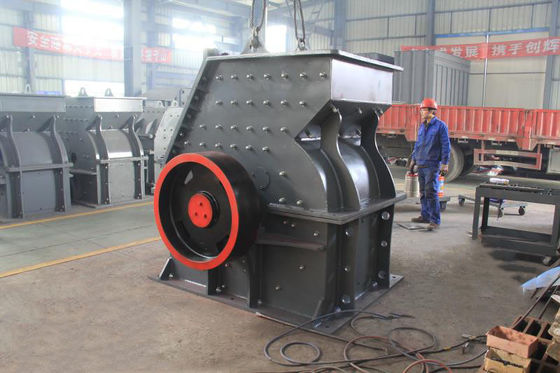

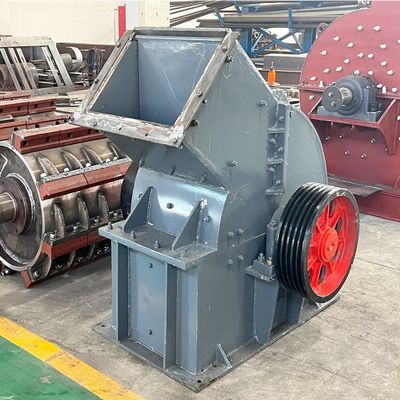

After-sales Service: | 1 Year | Product Name: | Hammer Crusher |
Capacity(T/H): | 5-150tph | Quality: | Advanced Technology |
Installation: | Under Technical Guidance | Transport Package: | Normal Packing Ls In Wooden Cases |
Specification: | Standard | Trademark: | Dingbo Machinery |
Origin: | Shanghai, China | HS Code: | 8474209000 |
Supply Ability: | 100sets/Month | Type: | Hammer Crusher |
Motor Type: | AC Motor | Motor Power: | 11-480kw |
Application: | Stone, Ore, Sand | Materials: | Ore |
Outlet Size: | <35mm | Customization: | Available | Customized Request |
Model | Feed particle size (mm) | Discharge size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall dimensions(mm) |
PC400*300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900*670*860 |
PC600*400 | ≤250 | ≤30 | 10-22 | 22 | 1.5 | 1200*1050*1200 |
PC800*600 | ≤250 | ≤25 | 18-40 | 55 | 3.8 | 1310*1180*1310 |
PC1000*800 | ≤350 | ≤35 | 25-50 | 75 | 4 | 1600*1390*1575 |
PC1000*1000 | ≤300 | ≤35 | 30-55 | 132 | 8 | 1800*1590*1775 |
PC1250*1250 | ≤350 | ≤35 | 35-65 | 180 | 14 | 2000*1600*1890 |
PC1400*1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365*1870*2220 |
PC1600*1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050*2850*2800 |
Our servises
Pre-sales Service: The wide product range enables us to provide our customers with stand-alone machines orcomplete processing plants.Based on our customers' request and budget, our experts makeefficient , reliable solutions.Following customers' order we produce strictly, what's more, beforeplacing the order every customer has the chance to visit DBM working machines or complete plantin the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREEall relevant visitor-friendly services including invitation letter preparation, hotel reservation, airportpick-up, incity transportation, and sightseeing guide, etc.After-sales Service
*Send the engineers to guide the installation.Company Introduction
advanced Manufacturer of Crushing &Grinding Machines Shanghai dingbo has always been committed to manufacturing mining crushing equipment, sand-making equipment and industrial grinding equipment.
